A 24V DC sliding gate motor for gates up to 600 kg, with auto-reverse electric counter technology, a backup battery and a speed of 12 metres per minute.
Key features
24V DC motor
Maximum gate weight 600 kg
Auto-reverse electric counter technology
Backup battery
Speed 12 metres per minute
Overview

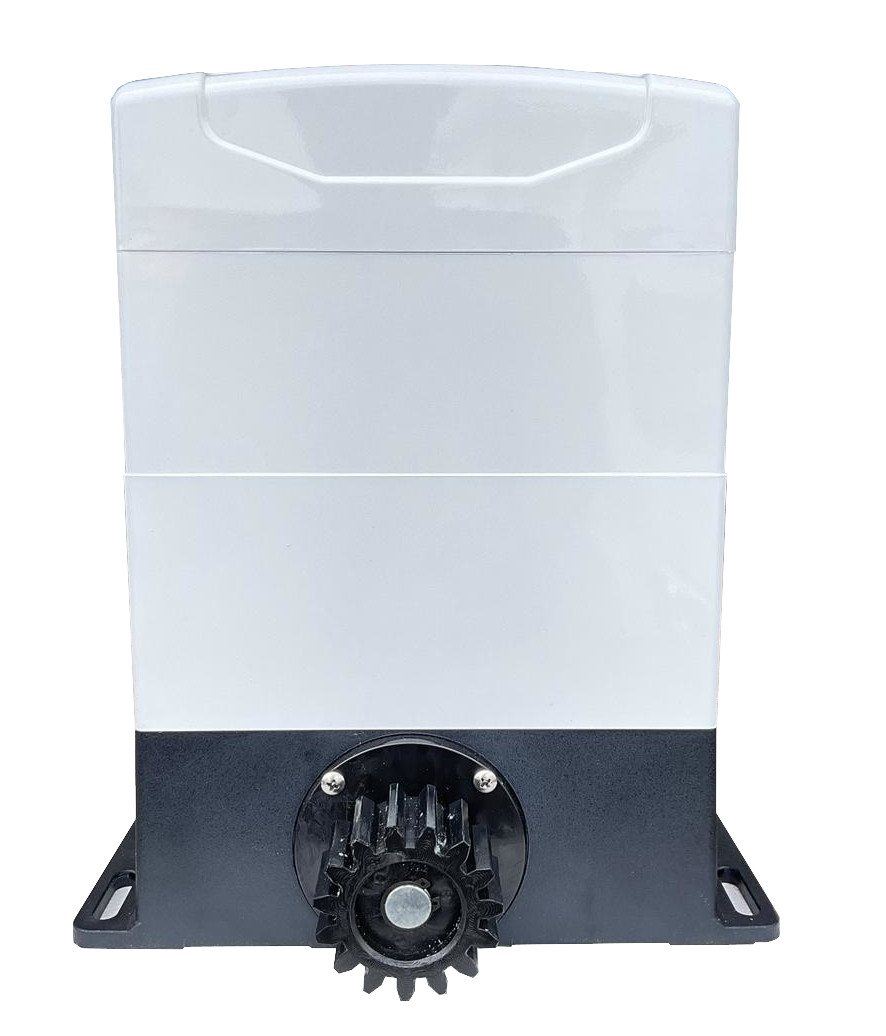

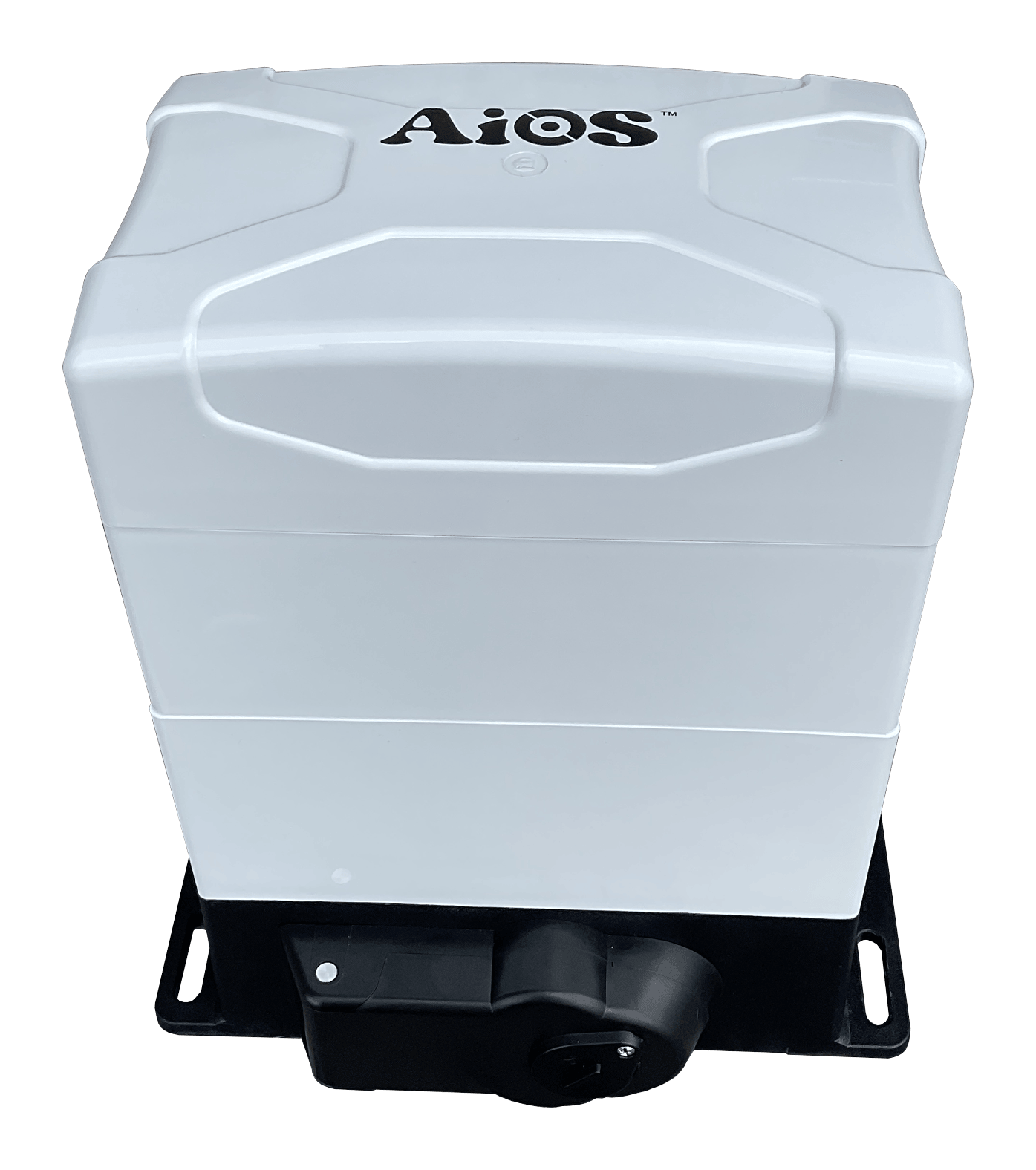

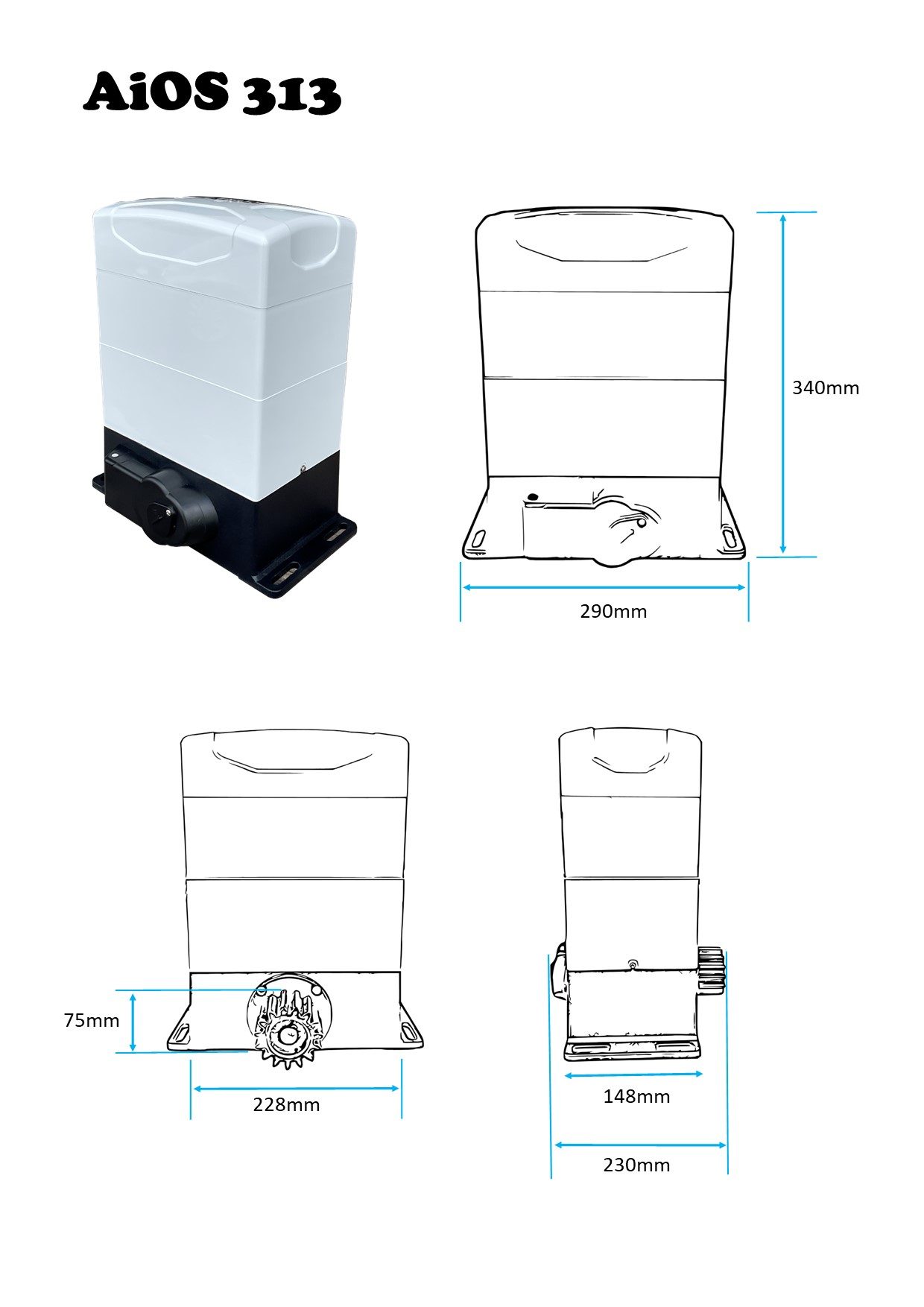

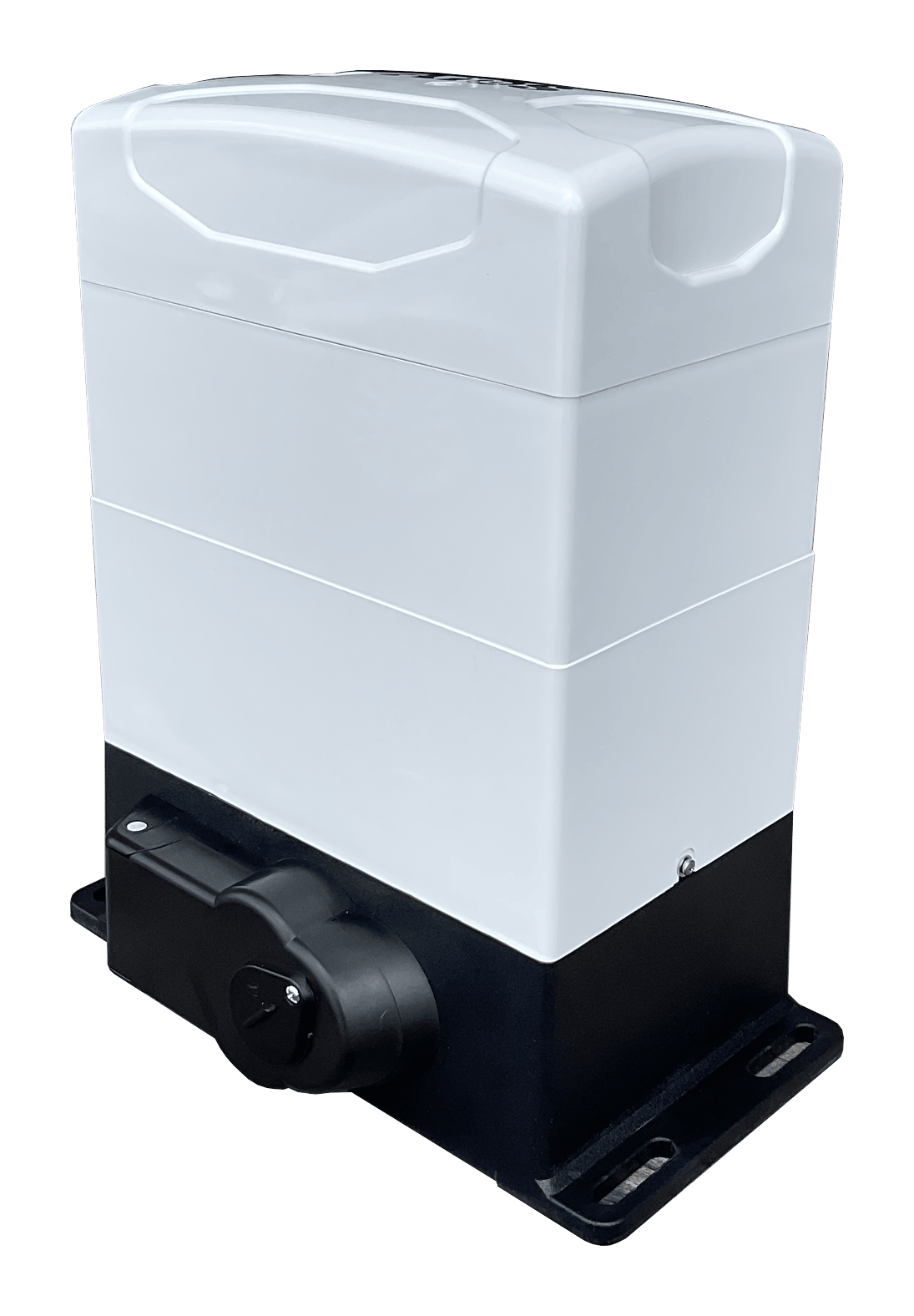

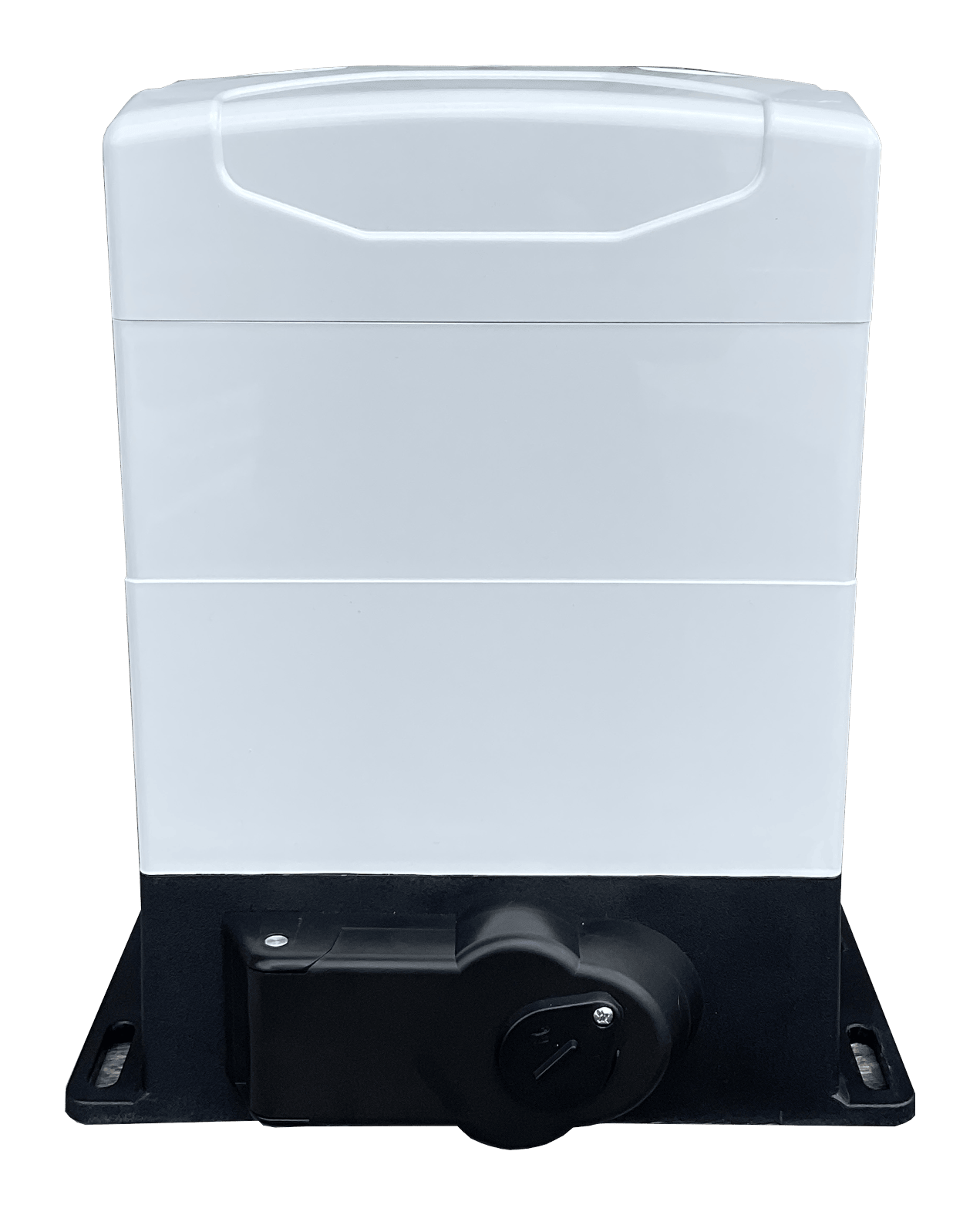

The AiOS 313 is a DC sliding gate motor: a 24V DC motor for gates weighing up to 600 kg, sliding the gate at 12 metres per minute.
Its safety clutch uses auto-reverse electronic counter technology, and electronic counter technology with 3-speed operation sets where the gate stops. It has a backup battery and a key switch; a built-in control board is optional and a keypad is supported.
AiOS 313
At a glance
|
AiOS 313
This model
|
 AiOS 303
|
AiOS 737
|
|
|---|---|---|---|
| Motor Type | DC Motor | DC Motor | AC Motor |
| Maximum Gate Weight | 600 kg | 800 kg | 800 kg |
| Sliding Gate Speed | 12 m/min | 12 m/min | 12 m/min |
A heavy-duty DC sliding gate motor for residential and industrial use — it handles gates up to 800 kg and comes with a backup battery for continuous operation during power outages.
A 240V AC sliding gate motor for gates up to 800 kg, at a speed of 12 metres per minute.
Heavy duty
A heavy-duty 240V AC sliding gate motor for gates up to 1,500 kg, at a speed of 12 metres per minute.
A 240V AC sliding gate motor for gates up to 2,000 kg, at a speed of 13 metres per minute.
Tell us the gate type, size and weight — our team will recommend the right setup.
